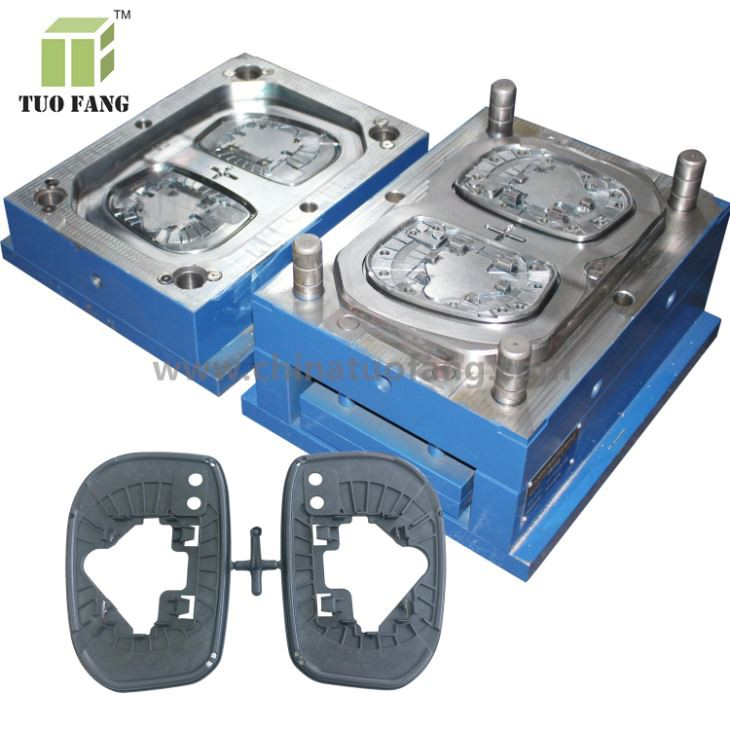

Weld lines, also called knit lines, are formed when two melt fronts converge and join forming a
thin fine line in the part. This can be seen in untextured parts and in highly polished surfaces. The
wo converging melt fronts cool rapidly and bond poorly when they join. At this melt junction, gas
is also trapped by the converging melt fronts. These fine lines cause a major weakness in the part
that can caused part failure in its end use. Differences in gloss can also be noticed in weld line areas
Causes:
Moisture in the material due to insufficient drying can form at the melt front, forming an interface between the two melt fronts. This creates a weakness in the parts structure
2. Low melt temperatures cause the melt fronts to cool faster causing converging melt fronts to bond poorly
3. Slow injection speeds will allow the melt front to cool early in the part fill, and by the time the two melt fronts join, poor and weak bonding of the melt front occurs
4. Gate location plays a key role in weld line formation
5. Low mold temperatures cause the melt front to cool fast and set up before the converging melt fronts join. This creates weak weld lines and more pronounced weld lines
6. Poor venting at the location where melt fronts come together results in gas trapping at the melt front, preventing the melt fronts from coming together
7. Workpiece design
Solutions:
1. Using recommended drying conditions for the material is advised
2. Increasing melt temperatures increase flow and improve the melt front bonding
3. High packing and hold pressures are needed to adequately force the two melt fronts to join and bond, and to fill out the part completely to assure strong weld line strength or even to eliminate weld lines. Increasing hold time or packing time will also improve weld strength
4. Gates can be located to shift the position of the weld lines away from areas that can affect part performance
5. Raising the mold temperature will keep the material molten longer, resulting in stronger weld lines and even elimination of weld lines
6. Adding vents, using overflows, or using porous metal inserts can force air out, improving the weld or knit line
7. Increasing the wall thickness no more than 0.005 in. along either side of the weld lines can shift the location of the weld away from critical areas
