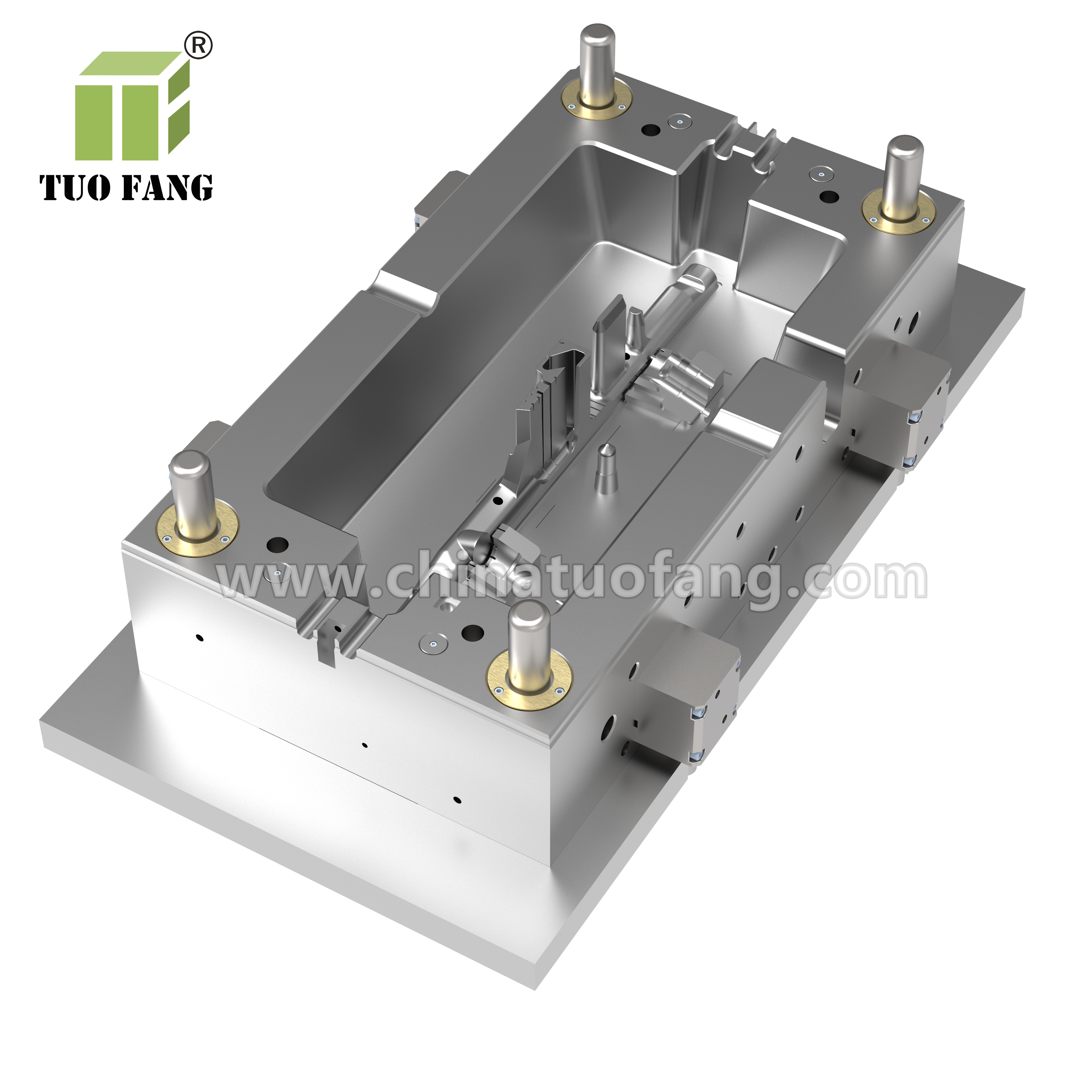

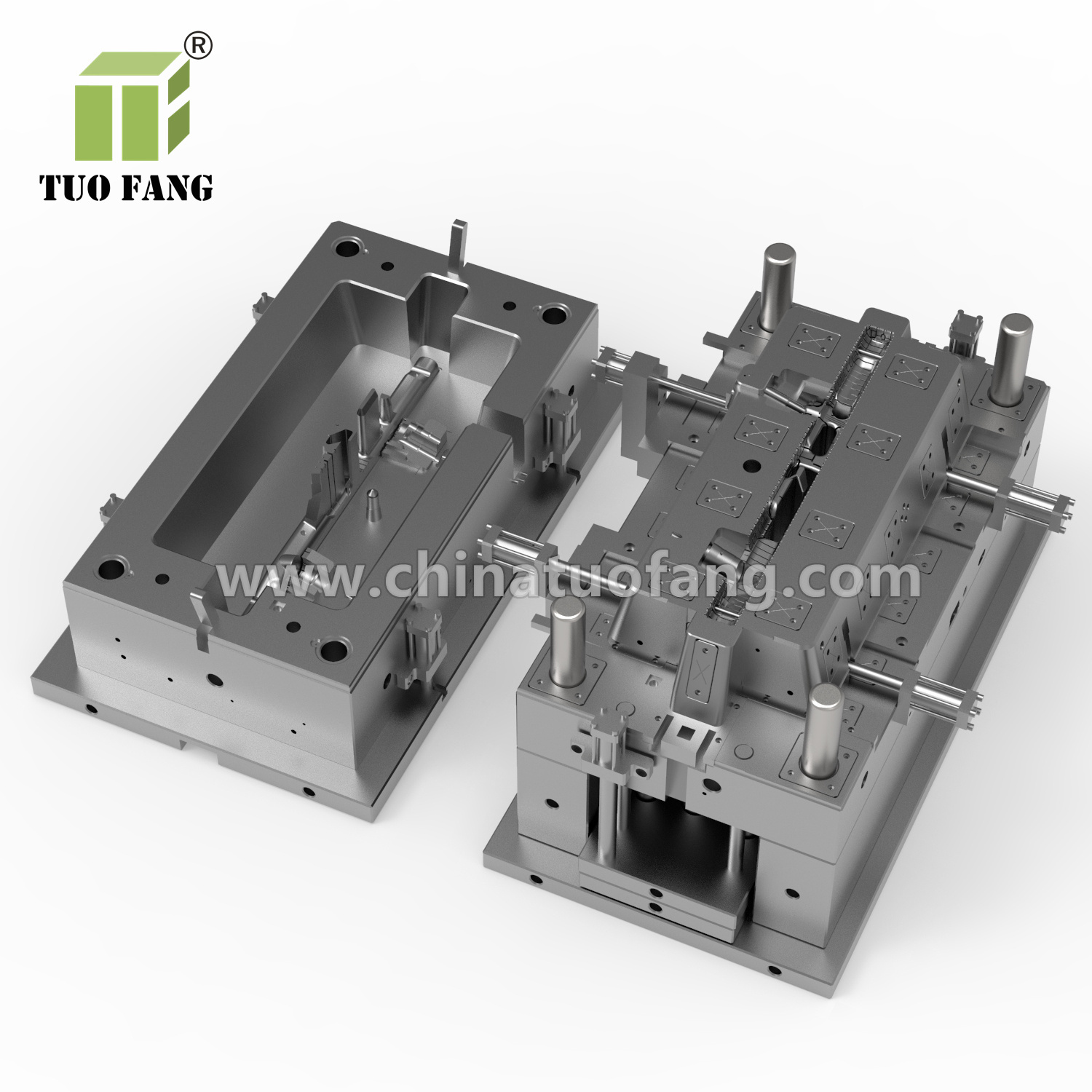

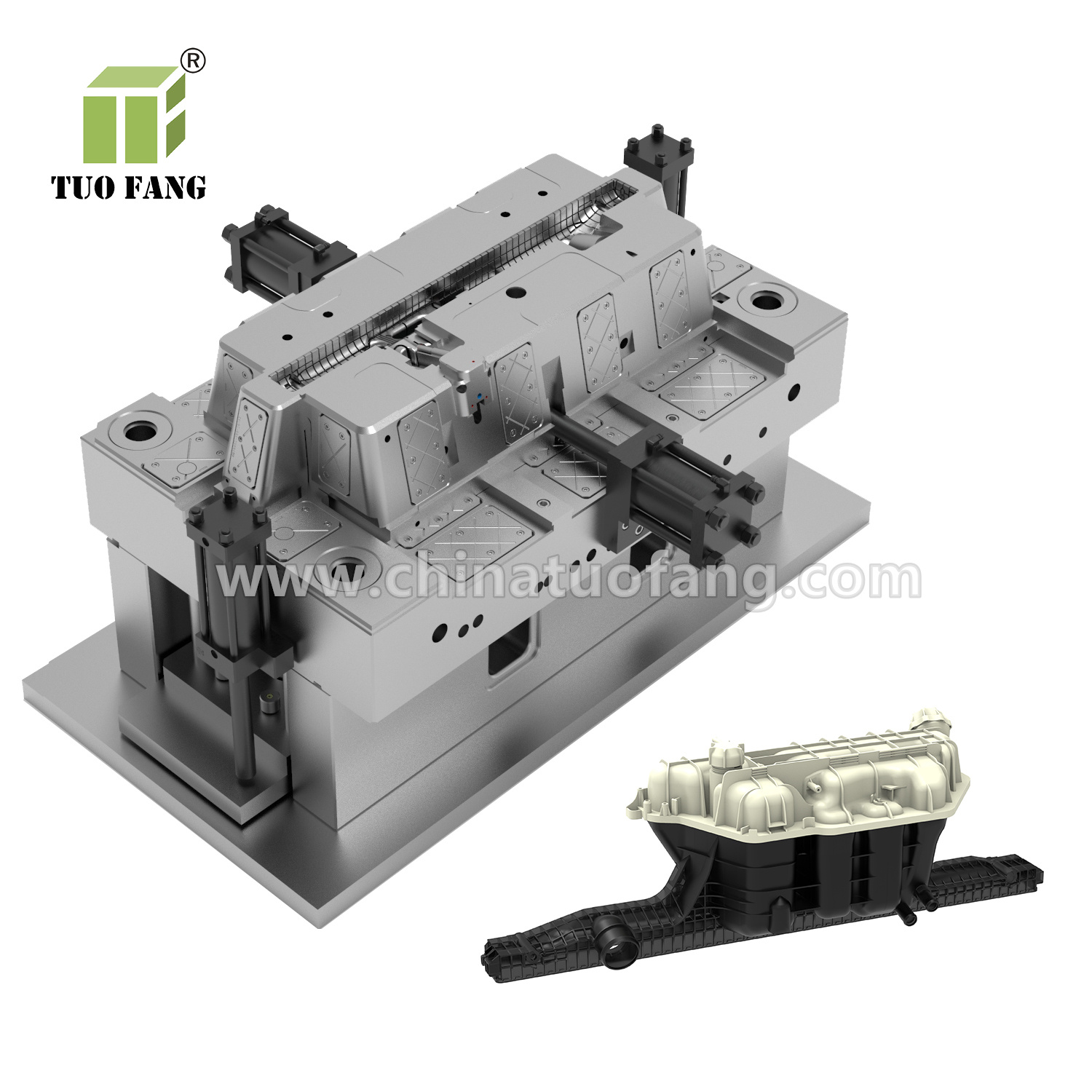

Heavy Duty Truck Radiator Plastic Tank Mould

Professional Heavy Duty Truck Radiator Tank Mould Manufacturer

Taizhou Tuofang Plastic Mould specializes in the design and manufacturing of heavy-duty truck radiator plastic tank moulds, providing high-precision mould solutions for OEM and aftermarket cooling system manufacturers worldwide.

Our radiator tank moulds are widely used for trucks, buses, construction machinery, agricultural equipment, and commercial vehicles.

High-Quality Mould Steel

To ensure long mould life and stable mass production, we select premium mould steels according to customer requirements:

• P20 Steel

• 718H Steel

• H13 / 1.2344 ESR Steel

All critical mould components are heat-treated to improve wear resistance, dimensional stability, and corrosion resistance.

Technical Challenges of Heavy Truck Radiator Tank Moulds

Compared with passenger car radiator tanks, heavy-duty truck radiator tanks have more complex structures and stricter dimensional requirements.

Key technical challenges include:

✔ Large-size plastic tank mould design

✔ PA66 GF30 / PA66 GF35 glass fiber reinforced material processing

✔ Warpage and shrinkage control

✔ Pre-deformation mould design technology

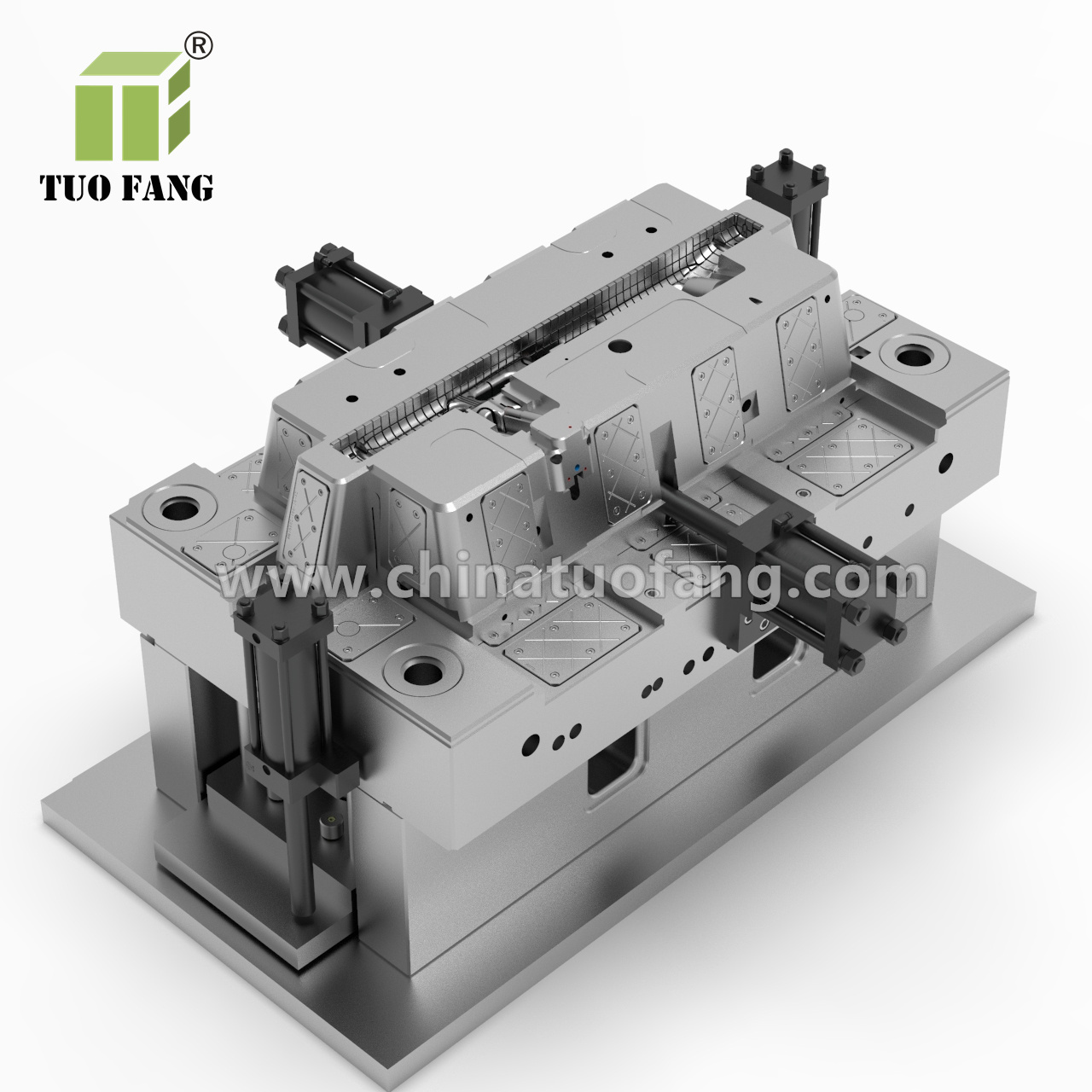

✔ Multiple side actions and hydraulic slider systems

✔ Deep rib structures and complex sealing surfaces

✔ High precision clip slot and gasket groove molding

✔ Hot runner system optimization

✔ Balanced filling and fiber orientation control

✔ Leak-proof sealing surface accuracy

Our Engineering Solutions

Our experienced engineering team performs comprehensive mould flow analysis before manufacturing.

Solutions include:

• Moldflow simulation analysis

• Pre-deformation compensation design

• Optimized cooling channel layout

• Multi-directional slider and lifter mechanisms

• Valve gate hot runner systems

• Precision CNC machining and EDM processing

• High-accuracy assembly and fitting

• Strict dimensional inspection and trial testing

These solutions effectively reduce warpage, improve sealing performance, and ensure excellent dimensional consistency.

Key Features

• Long mould life

• High production efficiency

• Stable cycle time

• Excellent surface quality

• Low maintenance cost

• Suitable for fully automatic production

• Consistent quality for mass production

Applications

Our heavy truck radiator tank moulds are suitable for:

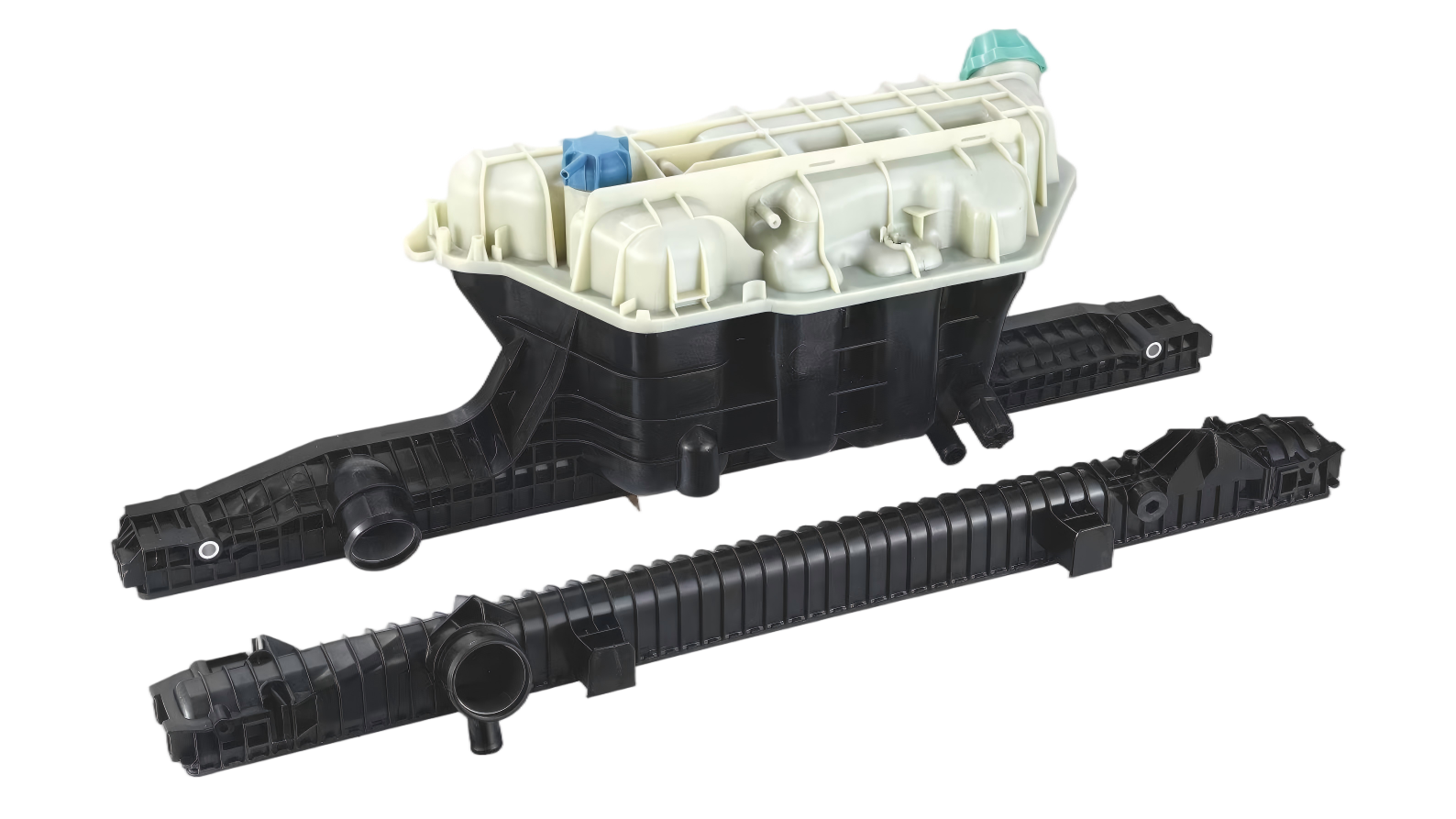

• Truck Radiator Plastic Tanks

• Charge Air Cooler Tanks

• Intercooler Tanks

• Expansion Tanks

• Cooling System Components

• Commercial Vehicle Cooling Parts

Why Choose Tuofang Mould?

• More than 15 years of mould manufacturing experience

• Strong expertise in automotive cooling system moulds

• Advanced CNC machining equipment

• Complete project management from design to sampling

• Exported moulds to Europe, South America, Middle East, Africa, and Asia

We provide complete turnkey solutions for heavy-duty truck radiator tank moulds, helping customers achieve high-quality production, reduced manufacturing costs, and faster project launches.
